YIELD MONITORING

Hardware that installs on any combine. Software that automates the production of corrected yield maps.

Farmtrx annotated harvester
support

EXPERT SUPPORT

2 year warranty

2 YEAR WARRANTY

data confidentiality

DATA CONFIDENTIALITY

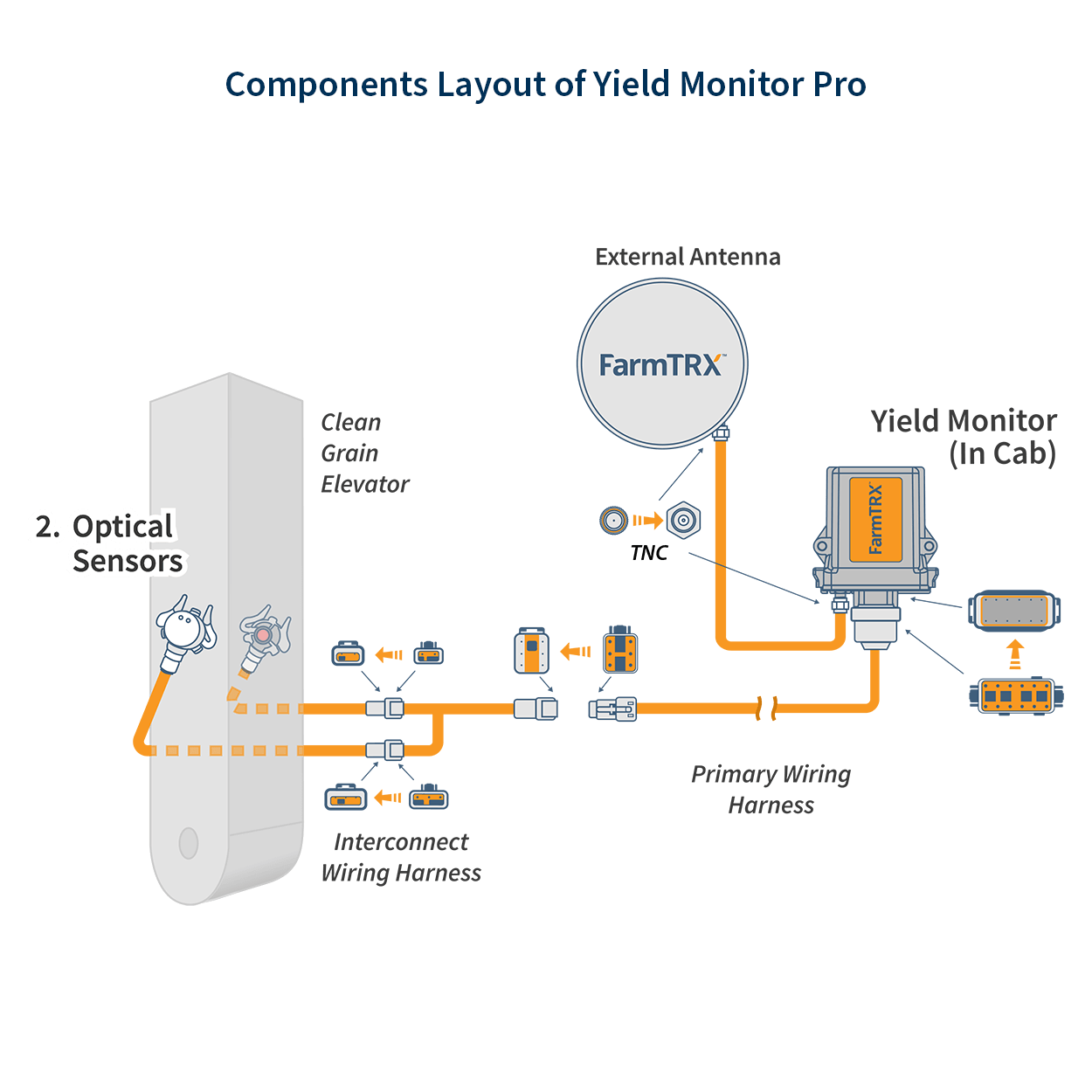

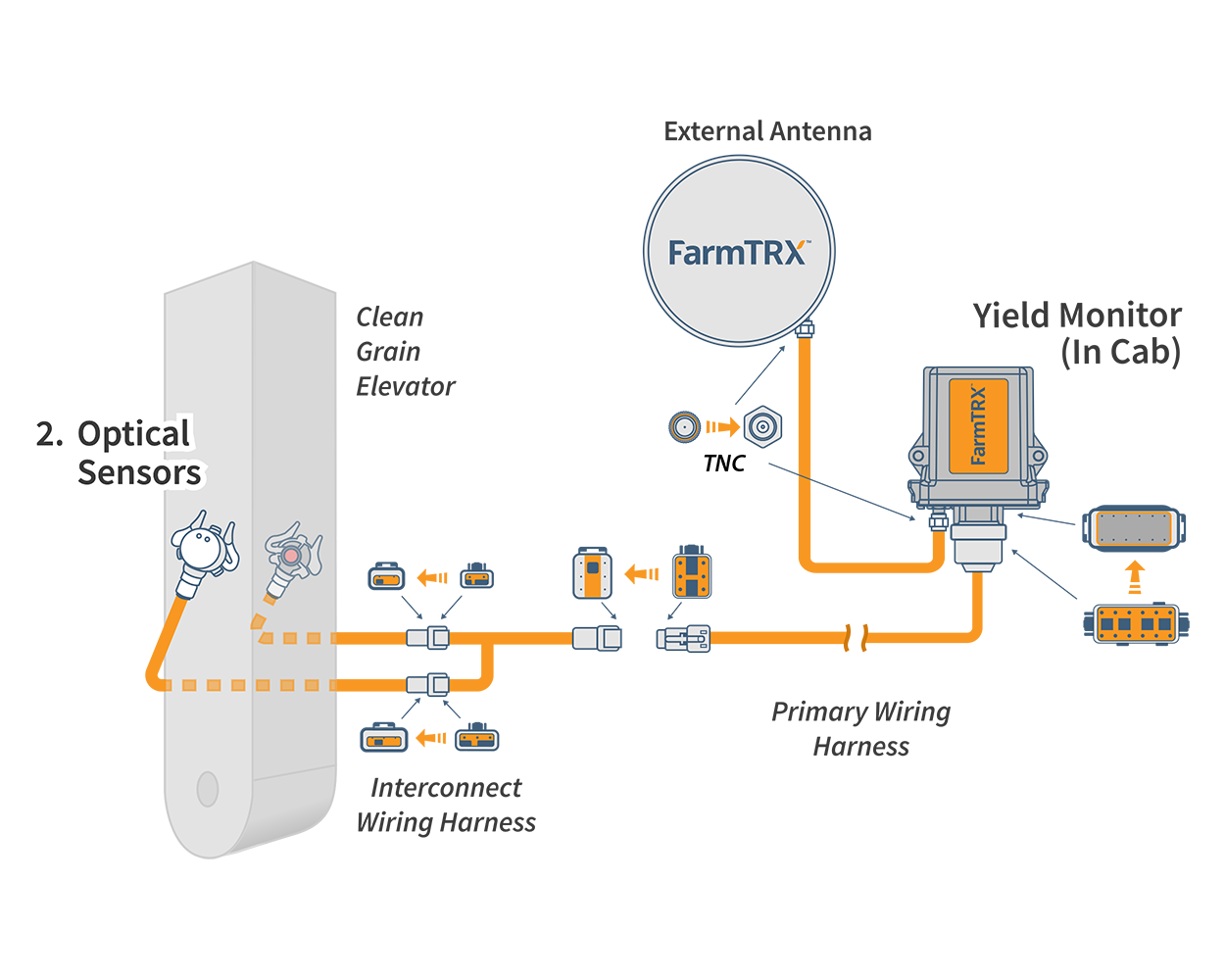

Everything You Need In One Box

Yield Monitor

Housing enough on-board storage to archive years of harvest data. The Yield Monitor installs in the cab of the combine and uses Bluetooth® connectivity to pair with your smartphone or tablet.

Moisture Sensor

Bringing moisture capability to your yield monitor. The Moisture Sensor installs at the base of the elevator clean-out door. View live and average moisture readings directly from the cab and get precision moisture maps.

Rugged Optical Sensors

Two optical sensors mount on either side of the combine clean grain elevator and use a light beam to measure yield volume on each passing paddle

Drill Guide Kit
QuickConnect Install Kit

Sensor installation is fast and effective with the QuickConnect mounting system. A Drill Guide Kit, including a drill extension, necessary drill bits and drill guide, is included with the Yield Monitor.

GPS Antenna

The included GPS antenna mounts on the roof of your cab. Whether your combine is pre-GPS era, or brand new, this antenna will provide accurate position, speed, and area readings.

wiring
Wiring & Harnesses Included

No hidden fees for cables or “unlock” fees. We supply everything you need to get up and running including ruggedized cables and connectors.

Empowering In-Field Decision Making and Post-Harvest Insights

N

Monitor current and average yield and moisture in the cab

N

Equip your combine for data sharing with CANBus capable messaging

N

Free over-the-air software updates so farmers always get the latest in yield mapping technology

overview

How It Works

install

INSTALL

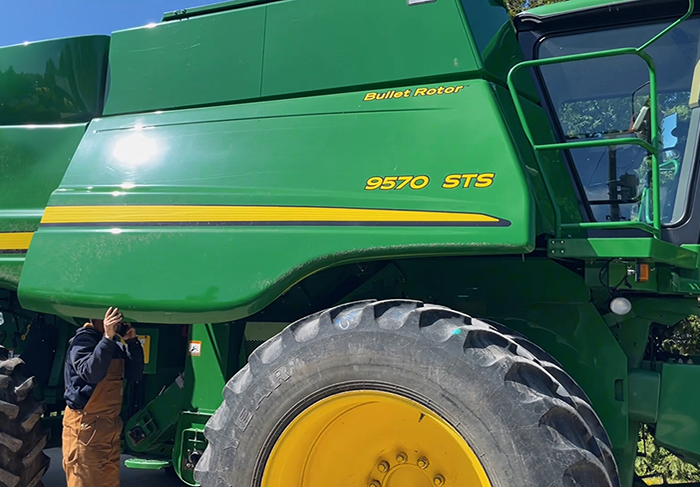

Install on any combine with a clean grain elevator in under 2 hours.

monitor

MONITOR

View live and average yield and moisture from your smartphone or tablet.

upload

UPLOAD & REVIEW

Upload yield data from the field or the yard with cellular data or WiFi.

Install Simply with QuickConnect Mounting Technology

Patent pending QuickConnect technology makes installation of the optical sensors easy for any combine. Drill straight-across from just one side of the elevator.

farmtrx install sensors
farmtrx app iphone

Monitor and Upload Data from your Phone or Tablet

  • Use your own device to wirelessly connect to the Yield Monitor
  • Calibrate once per crop type, per season to get accurate in-cab readings. If you want to input field totals after harvest, you can do that too
  • Compatible with iOS or Android

Precision Yield Mapping

Upload yield data to the Web App to get:

N

Automated cleaning and correction of yield data

N

Multi-combine equalization

N

9 precision map output options

N

Option to correct inputs after harvesting

N

Access to your raw yield data is always free
